ATE 24.0222-8018.1 - fékdob ALFA ROMEO FIAT LANCIA

Adatok

Leírás

Tovább a boltba

Új alkatrész, garanciával!

Használd a RACING5 kuponkódot és a fenti végösszeg 5%-al alacsonyabb lesz
A kupon a webáruházunkban történő vásárlás esetén érvényesíthető: www.kuplungviaweb.com

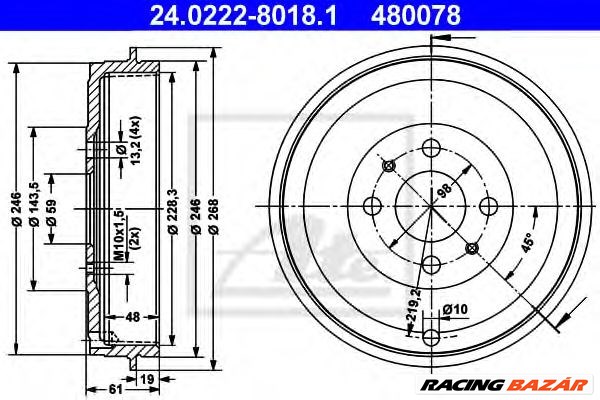

Műszaki adatok:
Befogadó átmérő [mm] 59,0
Befogadó átmérő [mm] 59
Dobátmérő 228,0
Fékdob belső mag. [mm] 48,0
Fékdob belső mag. [mm] 48
Fékdob külső átmérő [mm] 268
Fékdob max. felszabályozhatóság [mm] 230,0
Fékdob max. felszabályozhatóság [mm] 230
Fékdob telj. mag. [mm] 61,0
Fékdob telj. mag. [mm] 61
Fékdobátmérő belül [mm] 228
Fékdobátmérő kívül [mm] 268,0
Furat-? [mm] 13,2
Furatátmérő [mm] 13,2
lyukkör ? [mm] 98
lyukkörátmérő [mm] 98,0
Lyukszám 4
MAPP kód elérhető
Vizsgálat jelzés E1 90R-02D0324/1950


Gyári számok:
BENDIX: 329006B
BENDIX: 329022B
BENDIX: 329213B
BOSCH: 0 986 477 088 [0986477088]
BREMBO: 14.5102.10 [14510210]
BREMBO: 14.7127.20 [14712720]
CAR: 433.063 [433063]
CIFAM: 700-009 [700009]
CIFAM: 700-022 [700022]
CIFAM: 700-035 [700035]
DELPHI: BF201
DELPHI: BF379
EAN: 4006633068727
FIAT: 51816526
FIAT: 60810025
FIAT: 60814839
FIAT: 7569600
FIAT: 7769850
FTE: BT146
HELLA PAGID: 8DT 355 300-071 [8DT355300071]
HELLA: 8DT 355 300-071 [8DT355300071]
JURID: 329022J
JURID: 329213J
METELLI: 18-0009 [180009]
METELLI: 18-0022 [180022]
METELLI: 18-0035 [180035]
MGA: T7449
MGA: T7457
MGA: T7472
MGA: TR7457
MINTEX: MBD219
NK: 251001
NK: 252310
OMC: 100109
OMC: 100131
OMC: 100182
PAGID: 60904
PEX: 15.0011 [150011]
PEX: 15.0018 [150018]
PEX: 15.0176 [150176]
PILENGA: 6230
QUINTON HAZELL: 7056.00 [705600]
QUINTON HAZELL: BDR146
QUINTON HAZELL: BTF146
REMSA: 7056.00 [705600]
ROADHOUSE: 7056.00 [705600]
TEXTAR: 94014000
TEXTAR: 98100 0140 0 1 [98100014001]
TRW: DB4017
TRW: DB4210
usernumber: 480078
VALEO: 237036
VALEO: 237037
ZIMMERMANN: 230.1912.00 [230191200]


Mihez jó?:
ALFA ROMEO 145 (930) 1.4 i.e. [07.1994 - 12.1996] (1351ccm, 66Kw, 90HP)
ALFA ROMEO 145 (930) 1.6 i.e. [10.1994 - 12.1996] (1596ccm, 76Kw, 103HP)
ALFA ROMEO 145 (930) 1.9 TD [10.1994 - 02.1999] (1929ccm, 66Kw, 90HP)
ALFA ROMEO 146 (930) 1.4 i.e. [12.1994 - 12.1996] (1351ccm, 66Kw, 90HP)
ALFA ROMEO 146 (930) 1.6 i.e. [12.1994 - 12.1996] (1596ccm, 76Kw, 103HP)
ALFA ROMEO 146 (930) 1.9 TD [12.1994 - 02.1999] (1929ccm, 66Kw, 90HP)
FIAT ALBEA (178_) 1.2 [09.2001 - 12.2009] (1242ccm, 59Kw, 80HP)
FIAT DOBLO Cargo (223) 1.2 (223ZXA1A) [03.2001 - 01.2004] (1242ccm, 48Kw, 65HP)
FIAT DOBLO Cargo (223) 1.2 16V [11.2001 - 01.2006] (1242ccm, 59Kw, 80HP)
FIAT DOBLO Cargo (223) 1.3 D Multijet [10.2005 - 01.2010] (1248ccm, 55Kw, 75HP)
FIAT DOBLO Cargo (223) 1.3 JTD 16V Multijet [08.2006 - ] (1248ccm, 62Kw, 84HP)
FIAT DOBLO Cargo (223) 1.3 JTD 16V [05.2004 - 12.2006] (1248ccm, 51Kw, 70HP)
FIAT DOBLO Cargo (223) 1.4 [10.2005 - ] (1368ccm, 57Kw, 77HP)
FIAT DOBLO Cargo (223) 1.6 16V (223ZXD1A) [10.2001 - ] (1596ccm, 76Kw, 103HP)
FIAT DOBLO Cargo (223) 1.6 16V [11.2001 - 08.2003] (1596ccm, 78Kw, 106HP)
FIAT DOBLO Cargo (223) 1.6 Natural Power [09.2002 - ] (1596ccm, 76Kw, 103HP)
FIAT DOBLO Cargo (223) 1.9 D (223ZXB1A) [03.2001 - ] (1910ccm, 46Kw, 63HP)
FIAT DOBLO Cargo (223) 1.9 JTD (223ZXE1A) [10.2001 - ] (1910ccm, 74Kw, 100HP)
FIAT DOBLO Cargo (223) 1.9 JTD Multijet [12.2006 - ] (1910ccm, 88Kw, 120HP)
FIAT DOBLO Cargo (223) 1.9 JTD [07.2003 - ] (1910ccm, 77Kw, 105HP)
FIAT DOBLO Cargo (223_) 1.6 Natural Power (223WXD1A) [02.2004 - 07.2009] (1596ccm, 68Kw, 92HP)
FIAT DOBLO egyterű (119_, 223_) 1.6 Natural Power (223AXD1A) [11.2005 - 07.2009] (1596ccm, 68Kw, 92HP)
FIAT DOBLO egyterű (223, 119) 1.2 (223AXA1A) [03.2001 - ] (1242ccm, 48Kw, 65HP)
FIAT DOBLO egyterű (223, 119) 1.3 D Multijet [10.2005 - ] (1248ccm, 62Kw, 84HP)
FIAT DOBLO egyterű (223, 119) 1.3 JTD 16V [12.2004 - 05.2005] (1248ccm, 51Kw, 70HP)
FIAT DOBLO egyterű (223, 119) 1.3 JTD [05.2005 - ] (1248ccm, 55Kw, 75HP)
FIAT DOBLO egyterű (223, 119) 1.4 [10.2005 - ] (1368ccm, 57Kw, 77HP)
FIAT DOBLO egyterű (223, 119) 1.6 16V (223AXD1A) [10.2001 - ] (1596ccm, 76Kw, 103HP)
FIAT DOBLO egyterű (223, 119) 1.6 Natural Power [09.2002 - ] (1596ccm, 76Kw, 103HP)
FIAT DOBLO egyterű (223, 119) 1.6 [09.2002 - ] (1596ccm, 68Kw, 92HP)
FIAT DOBLO egyterű (223, 119) 1.9 D (223AXB1A) [03.2001 - ] (1910ccm, 46Kw, 63HP)
FIAT DOBLO egyterű (223, 119) 1.9 D Multijet [10.2005 - ] (1910ccm, 88Kw, 120HP)
FIAT DOBLO egyterű (223, 119) 1.9 JTD (223AXE1A) [10.2001 - ] (1910ccm, 74Kw, 100HP)
FIAT DOBLO egyterű (223, 119) 1.9 JTD [07.2003 - ] (1910ccm, 77Kw, 105HP)
FIAT FIORINO (147) 1.7 D [01.1988 - 10.1993] (1697ccm, 42Kw, 57HP)
FIAT FIORINO Dobozos (146) 1.3 [05.1988 - 09.1998] (1297ccm, 43Kw, 58HP)
FIAT FIORINO Dobozos (146) 1.4 [11.1992 - 10.1996] (1372ccm, 52Kw, 71HP)
FIAT FIORINO Dobozos (146) 1.7 TD [11.1996 - 05.2000] (1697ccm, 46Kw, 63HP)
FIAT FIORINO Dobozos (146) 60 1.7 D [05.1988 - 05.2000] (1698ccm, 44Kw, 60HP)
FIAT FIORINO Dobozos (146) 60 1.7 D [05.1988 - 10.1996] (1697ccm, 42Kw, 57HP)
FIAT FIORINO Dobozos (146) 65 1.7 TD [01.1997 - 05.2001] (1698ccm, 46Kw, 63HP)
FIAT FIORINO Dobozos (146) 70 1.3 [01.1988 - 12.1994] (1301ccm, 49Kw, 67HP)
FIAT FIORINO Dobozos (146) 70 i.e. 1.4 [05.1994 - 05.2001] (1372ccm, 49Kw, 67HP)
FIAT FIORINO Dobozos (146) 75 i.e. 1.6 [10.1993 - 05.2001] (1581ccm, 55Kw, 75HP)
FIAT FIORINO dobozos/kombi (225) 1.3 D Multijet [03.2015 - ] (1248ccm, 59Kw, 80HP)
FIAT FIORINO dobozos/kombi (225) 1.3 D Multijet [07.2009 - ] (1248ccm, 70Kw, 95HP)
FIAT FIORINO dobozos/kombi (225) 1.3 D Multijet [11.2007 - ] (1248ccm, 55Kw, 75HP)
FIAT FIORINO dobozos/kombi (225) 1.4 Natural Power [10.2009 - ] (1368ccm, 57Kw, 78HP)
FIAT FIORINO dobozos/kombi (225) 1.4 [10.2009 - ] (1368ccm, 57Kw, 78HP)
FIAT FIORINO dobozos/kombi (225) 1.4 [11.2007 - ] (1360ccm, 54Kw, 73HP)
FIAT FIORINO dobozos/kombi (225_) 1.4 Natural Power (225AXC1A, 225BXC1A) [06.2008 - ] (1368ccm, 51Kw, 69HP)
FIAT FIORINO dobozos/kombi (225_) Ecargo (EV) [01.2010 - 12.2012] (ccm, 24Kw, 33HP)
FIAT FIORINO egyterű (225_) 1.3 JTD Multijet (225BXB1A, 225BXB11) [11.2007 - ] (1248ccm, 55Kw, 75HP)
FIAT FIORINO egyterű (225_) 1.3 JTD Multijet (225BXE1A) [01.2011 - ] (1248ccm, 70Kw, 95HP)
FIAT FIORINO egyterű (225_) 1.4 (225AXA1A) [07.2014 - ] (1368ccm, 57Kw, 77HP)
FIAT FIORINO egyterű (225_) 1.4 (225BXA1A) [11.2007 - ] (1360ccm, 54Kw, 73HP)
FIAT FIORINO egyterű (225_) 1.4 CNG (225AXC1A) [07.2014 - ] (1368ccm, 51Kw, 69HP)
FIAT FIORINO egyterű (225_) 1.4 CNG (225AXC1A, 225BXC1A) [06.2008 - ] (1368ccm, 57Kw, 77HP)
FIAT FIORINO Pick up (146) 1.4 [05.1994 - 05.2001] (1372ccm, 49Kw, 67HP)
FIAT FIORINO Pick up (146) 1.4 [10.1993 - 10.1996] (1372ccm, 52Kw, 71HP)
FIAT FIORINO Pick up (146) 1.6 [01.1994 - 05.2001] (1581ccm, 55Kw, 75HP)
FIAT FIORINO Pick up (146) 1.7 D [05.1988 - 10.1999] (1698ccm, 44Kw, 60HP)
FIAT FIORINO Pick up (146) 1.7 D [10.1993 - 10.1999] (1697ccm, 42Kw, 57HP)
FIAT FIORINO Pick up (146) 1.7 TD [01.1997 - 05.2001] (1698ccm, 46Kw, 63HP)
FIAT IDEA (350_) 1.3 D Multijet [05.2008 - 12.2012] (1248ccm, 70Kw, 95HP)
FIAT IDEA (350_) 1.3 D Multijet [10.2005 - ] (1248ccm, 66Kw, 90HP)
FIAT IDEA (350_) 1.9 JTD [01.2004 - ] (1910ccm, 74Kw, 101HP)
FIAT IDEA Van (350_) JTD Multijet (350BXG1A) [04.2005 - 12.2010] (1248ccm, 66Kw, 90HP)
FIAT IDEA Van (350_) MJTD (350BXD1A) [10.2004 - 12.2010] (1910ccm, 74Kw, 101HP)
FIAT LINEA (323) 1.3 D Multijet [06.2007 - ] (1248ccm, 66Kw, 90HP)
FIAT LINEA (323) 1.3 D Multijet [09.2009 - ] (1248ccm, 70Kw, 95HP)
FIAT LINEA (323) 1.4 [06.2007 - ] (1368ccm, 57Kw, 77HP)
FIAT LINEA (323) 1.4 [12.2008 - ] (1368ccm, 66Kw, 90HP)
FIAT LINEA (323_) 1.3 JTD Multijet (323AXB1A) [10.2006 - ] (1248ccm, 63Kw, 86HP)
FIAT MAREA Weekend (185) 1.6 100 16V [09.1996 - 05.2002] (1581ccm, 76Kw, 103HP)
FIAT MAREA Weekend (185) 1.6 [09.2000 - 08.2002] (1596ccm, 76Kw, 103HP)
FIAT MAREA Weekend (185) 1.8 115 16V [09.1996 - 05.2002] (1747ccm, 83Kw, 113HP)
FIAT MAREA Weekend (185) 1.9 JTD 105 [04.1999 - 05.2002] (1910ccm, 77Kw, 105HP)
FIAT MAREA Weekend (185) 1.9 JTD 110 [01.2001 - 05.2002] (1910ccm, 81Kw, 110HP)
FIAT MAREA Weekend (185) 1.9 JTD [01.2001 - 12.2007] (1910ccm, 79Kw, 107HP)
FIAT MAREA Weekend (185) 1.9 TD 100 [09.1996 - 05.2002] (1910ccm, 74Kw, 100HP)
FIAT MAREA Weekend (185) 1.9 TD 75 [09.1996 - 05.2002] (1910ccm, 55Kw, 75HP)
FIAT MULTIPLA (186) 1.6 100 16V (186AXA1A) [04.1999 - 06.2010] (1581ccm, 76Kw, 103HP)
FIAT MULTIPLA (186) 1.6 16V (186AGB1A) [04.2002 - 06.2010] (1596ccm, 70Kw, 95HP)
FIAT MULTIPLA (186) 1.6 16V Bipower (186AMB1A) [04.1999 - 06.2010] (1581ccm, 76Kw, 103HP)
FIAT MULTIPLA (186) 1.6 16V Bipower (186AXC1A) [10.2001 - 06.2010] (1596ccm, 76Kw, 103HP)
FIAT MULTIPLA (186) 1.6 16V Blupower (186AMA1A) [04.1999 - 06.2010] (1581ccm, 70Kw, 95HP)
FIAT MULTIPLA (186) 1.6 16V GPL [10.2001 - 06.2010] (1596ccm, 76Kw, 103HP)
FIAT MULTIPLA (186) 1.6 [03.2001 - 08.2005] (1596ccm, 74Kw, 101HP)
FIAT MULTIPLA (186) 1.6 [05.2004 - 08.2005] (1596ccm, 68Kw, 92HP)
FIAT MULTIPLA (186) 1.6 [09.2000 - 06.2010] (1596ccm, 76Kw, 103HP)
FIAT MULTIPLA (186) 1.9 JTD (186AXE1A) [04.2002 - 06.2010] (1910ccm, 88Kw, 120HP)
FIAT MULTIPLA (186) 1.9 JTD 105 (186AXB1A) [04.1999 - 06.2010] (1910ccm, 77Kw, 105HP)
FIAT MULTIPLA (186) 1.9 JTD 110 [03.2001 - 07.2002] (1910ccm, 81Kw, 110HP)
FIAT MULTIPLA (186) 1.9 JTD 115 [07.2002 - 06.2010] (1910ccm, 85Kw, 115HP)
FIAT MULTIPLA (186_) 1.6 Natural Power (186AGB1A05) [11.2008 - 06.2010] (1596ccm, 77Kw, 105HP)
FIAT MULTIPLA VAN (186_) 1.9 JTD (186AXG1A, 186BXG1A) [04.2002 - 06.2010] (1910ccm, 88Kw, 120HP)
FIAT MULTIPLA VAN (186_) 1.9 JTD [05.2004 - 06.2010] (1910ccm, 85Kw, 116HP)
FIAT MULTIPLA VAN (186_) Bipower [10.2001 - 06.2010] (1596ccm, 76Kw, 103HP)
FIAT PALIO (178BX) 1.0 [04.1996 - 10.2003] (994ccm, 45Kw, 61HP)
FIAT PALIO (178BX) 1.0 [04.1996 - 10.2003] (994ccm, 56Kw, 77HP)
FIAT PALIO (178BX) 1.1 [07.1997 - 10.2003] (1108ccm, 40Kw, 54HP)
FIAT PALIO (178BX) 1.2 [06.1998 - ] (1242ccm, 54Kw, 73HP)
FIAT PALIO (178BX) 1.2 [06.1999 - 10.2000] (1242ccm, 50Kw, 68HP)
FIAT PALIO (178BX) 1.2 [07.1997 - 08.2002] (1242ccm, 44Kw, 60HP)
FIAT PALIO (178BX) 1.2 [09.2001 - 01.2012] (1242ccm, 59Kw, 80HP)
FIAT PALIO (178BX) 1.5 [06.2004 - ] (1461ccm, 62Kw, 84HP)
FIAT PALIO (178BX) 1.7 TD [09.2001 - ] (1697ccm, 53Kw, 72HP)
FIAT PALIO (178_) 1.4 (178BXA1A) [10.2002 - 10.2004] (1368ccm, 63Kw, 86HP)
FIAT PALIO (178_) 1.7 D [04.1996 - 09.2002] (1698ccm, 42Kw, 57HP)
FIAT PALIO (178_) 1.7 TD [10.2002 - 01.2012] (1697ccm, 51Kw, 69HP)
FIAT PALIO Weekend (178DX) 1.0 [07.1998 - 10.2003] (994ccm, 45Kw, 61HP)
FIAT PALIO Weekend (178DX) 1.2 (178DX.G1A) [04.1996 - 02.2001] (1242ccm, 54Kw, 73HP)
FIAT PALIO Weekend (178DX) 1.2 (178DYA1A) [02.2001 - 10.2004] (1242ccm, 44Kw, 60HP)
FIAT PALIO Weekend (178DX) 1.2 Flex [07.1997 - 08.2002] (1242ccm, 44Kw, 60HP)
FIAT PALIO Weekend (178DX) 1.2 LPG [07.1997 - 08.2002] (1242ccm, 44Kw, 60HP)
FIAT PALIO Weekend (178DX) 1.2 [06.1999 - 10.2002] (1242ccm, 50Kw, 68HP)
FIAT PALIO Weekend (178DX) 1.2 [09.2001 - 10.2004] (1242ccm, 59Kw, 80HP)
FIAT PALIO Weekend (178DX) 1.4 [07.1997 - 08.2001] (1372ccm, 51Kw, 69HP)
FIAT PALIO Weekend (178DX) 1.4 [10.2005 - ] (1368ccm, 57Kw, 77HP)
FIAT PALIO Weekend (178DX) 1.5 [02.2002 - ] (1461ccm, 62Kw, 84HP)
FIAT PALIO Weekend (178DX) 1.6 16V (178DX.D1A) [04.1996 - 02.2001] (1581ccm, 74Kw, 100HP)
FIAT PALIO Weekend (178DX) 1.6 16V (178DYC1A06) [02.2001 - 01.2012] (1596ccm, 76Kw, 103HP)
FIAT PALIO Weekend (178DX) 1.6 [02.2001 - 02.2003] (1581ccm, 78Kw, 106HP)
FIAT PALIO Weekend (178DX) 1.7 TD (178DX.H1A) [04.1996 - 03.2001] (1698ccm, 51Kw, 70HP)
FIAT PALIO Weekend (178DX) 1.9 D (178DYD1A07) [03.2001 - ] (1910ccm, 46Kw, 63HP)
FIAT PALIO Weekend (178DX) 1.9 JTD [09.2001 - ] (1910ccm, 59Kw, 80HP)
FIAT QUBO (225) 1.3 D Multijet [02.2008 - ] (1248ccm, 55Kw, 75HP)
FIAT QUBO (225) 1.3 D Multijet [03.2015 - ] (1248ccm, 59Kw, 80HP)
FIAT QUBO (225) 1.3 D Multijet [07.2010 - ] (1248ccm, 70Kw, 95HP)
FIAT QUBO (225) 1.4 Natural Power [10.2009 - ] (1368ccm, 57Kw, 78HP)
FIAT QUBO (225) 1.4 [02.2008 - ] (1360ccm, 54Kw, 73HP)
FIAT QUBO (225) 1.4 [10.2009 - ] (1368ccm, 57Kw, 78HP)
FIAT STRADA Pick-up (178E) 1.2 Trekking [11.2005 - ] (1242ccm, 60Kw, 82HP)
FIAT STRADA Pick-up (178E) 1.2 [04.2003 - ] (1242ccm, 44Kw, 60HP)
FIAT STRADA Pick-up (178E) 1.2 [06.1999 - 12.2006] (1242ccm, 54Kw, 73HP)
FIAT STRADA Pick-up (178E) 1.3 D Multijet [05.2006 - ] (1248ccm, 62Kw, 85HP)
FIAT STRADA Pick-up (178E) 1.7 TD [06.1999 - 12.2006] (1698ccm, 51Kw, 69HP)
FIAT STRADA Pick-up (178E) 1.9 D [12.2000 - ] (1910ccm, 46Kw, 63HP)
FIAT STRADA Pick-up (178E) 1.9 JTD [04.2003 - ] (1910ccm, 59Kw, 80HP)
FIAT STRADA Pick-up (278_, 578_) 1.3 D Multijet [10.2010 - ] (1248ccm, 70Kw, 95HP)
FIAT TEMPRA (159) 1.4 i.e. (159.AC) [03.1991 - 08.1996] (1372ccm, 57Kw, 78HP)
FIAT TEMPRA (159) 1.4 i.e. (159.AC, 159.AX) [03.1992 - 08.1996] (1372ccm, 51Kw, 69HP)
FIAT TEMPRA (159) 1.6 i.e. (159.AE) [06.1990 - 07.1992] (1581ccm, 57Kw, 78HP)
FIAT TEMPRA (159) 1.6 i.e. (159.AJ) [06.1994 - 08.1996] (1581ccm, 63Kw, 87HP)
FIAT TEMPRA (159) 1.6 i.e. (159.AJ) [06.1994 - 08.1996] (1581ccm, 66Kw, 90HP)
FIAT TEMPRA (159) 1.6 i.e. (159.AS, 159.AT) [06.1992 - 08.1996] (1581ccm, 55Kw, 75HP

Partnereink

Volkswagen Bontott Alkatrészek

Márkafüggetlen bontott alkatrészek

Karosszériaalkatrészek.hu

Tromf-Controll - Kiskunfélegyháza

Minden, amit a BMW-d megérdemel..

Minőségi bontott BMW alkatrészek

Képek
